Omnitec OmniAire 2000 Prime — OA2000P

Overview

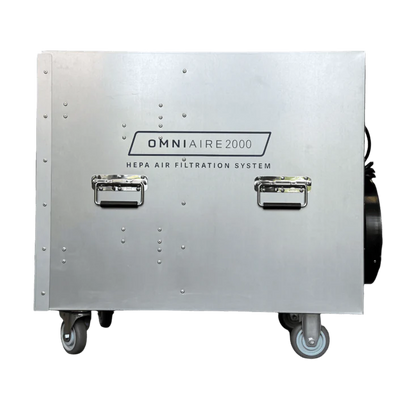

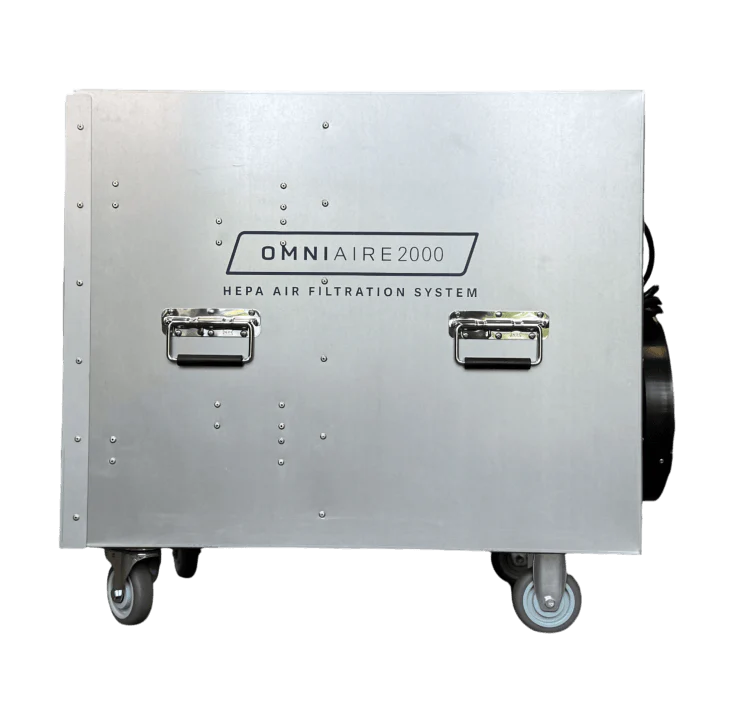

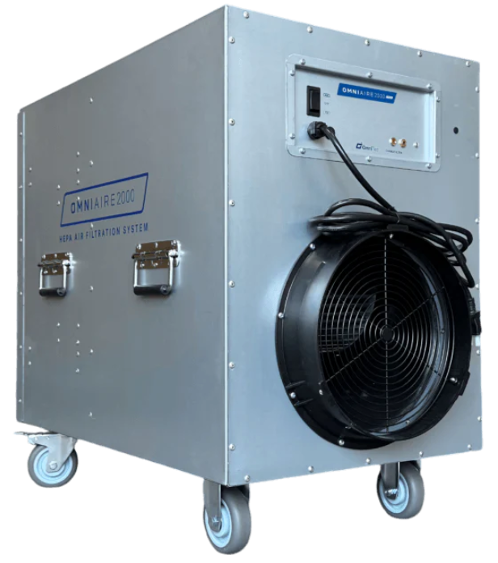

The OmniAire 2000 Prime is a high-output, variable-speed HEPA air scrubber/negative air machine designed for abatement, restoration, and infection-control projects. Delivering up to ~2,000 CFM on a standard 115 V / 15 A circuit, it pairs a rugged steel cabinet with a gasket-sealed true HEPA final filter for reliable particle capture and stable negative pressure on demanding job sites.

Features

• Variable airflow: Approx. 700–2,000 CFM (with clean filters) for precise ACH/pressure control

• True HEPA final stage: 99.97% @ 0.3 µm capture efficiency, gasket-sealed to minimize bypass

• Multi-stage filtration path: High-capacity prefilter → optional carbon media → HEPA final

• 12″ duct-ready: Round 12″ outlet; 12″ inlet door/adapter available for source capture

• Job-site tough: Powder-coated steel cabinet, reinforced corners, lift handles, locking casters

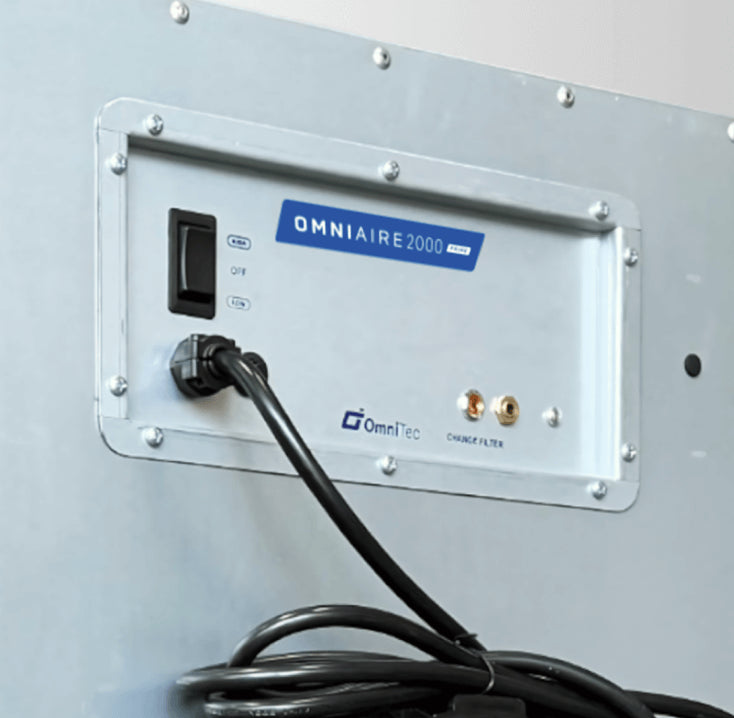

• Service-friendly: Quick front-door filter access; optional hour meter or pressure gauge

• Safety minded: Thermally protected motor; automatic restart after brief power interruptions

Specifications

• Airflow (variable): ~700–2,000 CFM (clean filters; real-world CFM varies with ducting/filter load)

• Power: 115 V, 60 Hz, up to ~12 A on high (standard 15 A circuit)

• Motor/Drive: High-efficiency blower with integral variable-speed control

• Filtration: Prefilter(s) + true HEPA (deep-pleat)

• Ducting: 12″ outlet collar; 12″ inlet collar/door (configuration-dependent)

• Cabinet: Heavy-gauge, powder-coated steel; gasketed service panels

• Sound level: ~70–74 dBA @ 5 ft (speed dependent)

• Dimensions: approx. 36″ L × 25″ W × 30″ H

• Weight: approx. 120–135 lb

• Power Cord: 10 ft, grounded (NEMA 5-15P)

Installation (setup & use)

1. Place & secure: Set on a level surface near the work zone; lock swivel casters.

2. Choose mode:

   • Negative pressure: Duct the outlet to a safe exhaust location outside containment.

   • Recirculation/positive supply: Return or supply filtered air within/to the target area.

3. Attach ducting: Use 12″ lay-flat or flex duct; keep runs short and minimize bends to preserve CFM.

4. Power: Plug into a dedicated 115 V / 15 A circuit; avoid external solid-state speed controllers.

5. Set airflow & verify: Adjust the speed dial to hit target ACH/pressure; verify with a differential pressure gauge when using containment.

6. Filter maintenance: Inspect prefilters frequently; replace when loaded to protect HEPA life and maintain airflow.

What’s in the Box

• OmniAire 2000 Prime (OA2000P) air scrubber (on casters)

• Prefilter (installed)

• True HEPA filter (installed, factory-tested)

• Owner’s manual

• (Configuration-dependent options: carbon prefilter, inlet door, hour meter/pressure gauge)

Important Details

• Performance note: Ratings are with clean filters and minimal duct losses; expect lower CFM with loaded filters, long runs, sharp bends, or low line voltage.

• Application: Indoor, non-explosive/IDLH environments; follow local codes and project protocols.

• Sizing tip: Many projects target ≥ 6 ACH—add a 25–75% safety margin for filter loading and duct/containment losses.

• Filter integrity: Use correctly sized, gasketed filters to maintain capture efficiency and pressure stability.

Warranty

1-year limited warranty against defects in materials and workmanship to the original purchaser (consumable filters and misuse excluded). Keep proof of purchase; non-approved parts or improper operation may void coverage.
