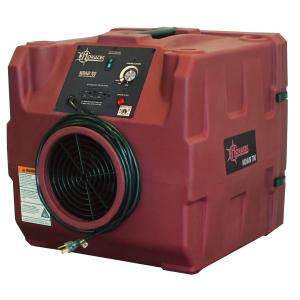

Novair 700 Air Scrubber

Overview

The Novair 700 is a compact, variable-speed HEPA air scrubber/negative air machine designed for abatement, restoration, and healthcare construction. Despite its small footprint, it delivers 200–700 CFM, runs on a standard 120 V circuit at about 3 A, and weighs only ~45–50 lb—easy to roll in, duct, and dial for precise airflow control.

Features

• Variable airflow: 200–700 CFM to match negative, positive, or recirculation needs

• True HEPA final stage: 99.97% @ 0.3 µm with tight gasket sealing

• Compact & tough: Roto-molded polyethylene shell—dent- and leak-resistant

• Easy ducting: 10″ vacuum/duct ports (supports lay-flat or flex duct)

• Service-friendly: Quick-release intake door accepts MERV prefilters and optional carbon

• Daisy-chain capable: Low current draw (~3 A) with built-in GFCI outlets; chain up to three units

Specifications

• Airflow (variable): 200–700 CFM (clean filters)

• Power / Current: 110–120 VAC, ~3 A, 50/60 Hz

• Filter train: Prefilter(s) + HEPA 99.97% @ 0.3 µm (HEPA size 16″ × 16″ × 3″)

• Ducting: 10″ vacuum/duct ports (lay-flat/flex)

• Cabinet/Shell: Roto-molded polyethylene

• Dimensions: approx. 22″ × 22″ × 21″

• Weight: ~45–50 lb

Installation (setup & use)

1. Place & secure the unit on a level surface near the work zone.

2. Choose mode:

   • Negative pressure: Duct the outlet (10″) to a safe exhaust location

   • Recirculation/positive supply: Return or supply filtered air to the target space

3. Attach ducting: Use 10″ lay-flat or flex duct; keep runs short and minimize bends for best CFM

4. Power: Plug into a standard 120 V circuit; if using multiple units, daisy-chain responsibly and confirm total load

5. Set speed & verify: Adjust the variable dial to reach target airflow/pressure; monitor with a differential pressure gauge

6. Maintain filters: Inspect prefilters frequently; replace when loaded to protect HEPA life

What’s in the Box

• Novair 700 (F0700) air scrubber

• Prefilter(s) (installed)

• HEPA filter (installed)

• Owner’s manual

Important Details

• Use case: Indoor, non-explosive/IDLH environments; size for required ACH (e.g., ≥6 ACH for many projects)

• Performance notes: Published CFM is with clean filters and minimal duct losses; long runs, bends, and filter loading reduce airflow

• Ports & filters: 10″ ports; accepts standard MERV prefilters and optional carbon for odors/VOCs

Warranty

180-day electrical component warranty and 1-year limited warranty on other materials. Retain proof of purchase.
