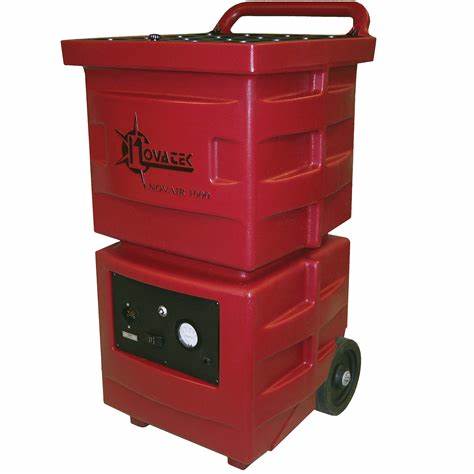

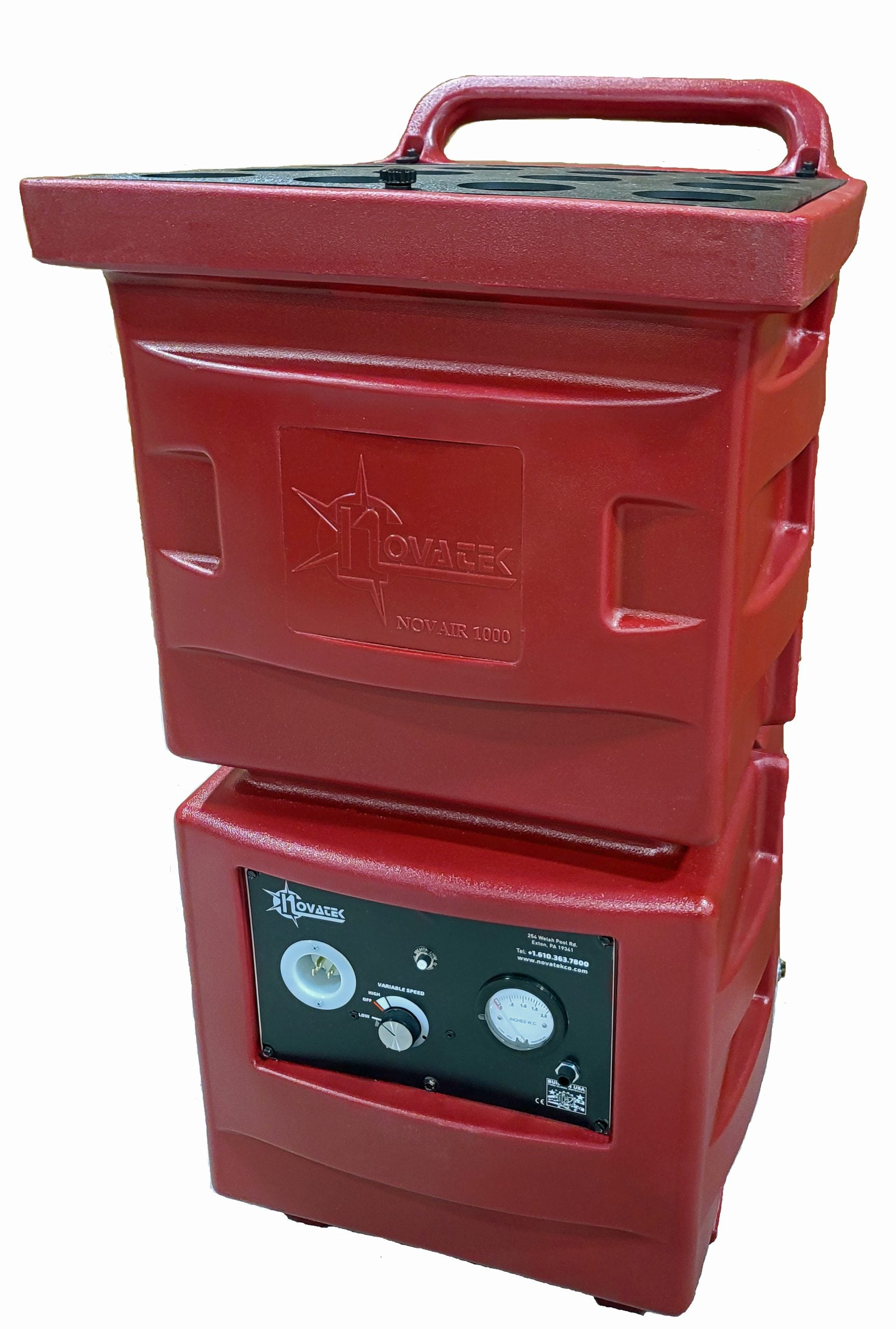

Novatek Novair 1000 Variable Speed Air Scrubber — F1000V

Overview

The Novair 1000 “Variable Speed” is a compact, job-site-tough HEPA air scrubber/negative air machine with adjustable airflow from 100–1,000 CFM. Its roto-molded polyethylene shell, 1 HP thermally protected motor, and standard 115 V power make it a versatile choice for abatement, restoration, and healthcare construction.

Features

• Variable airflow: Dial from 100 to 1,000 CFM to hit your target ACH or pressure

• True HEPA performance: 99.99% @ 0.3 µm with multi-stage filtration (ring prefilter, optional carbon, HEPA)

• Rugged & portable: Upright hand-truck style, wheels and skids, dent-/leak-resistant shell

• Ducting flexibility: 10″ exhaust collar standard; optional 12″ intake door for source capture

• Service-friendly: Front access door for quick filter changes; select SKUs include filter alarm/hour meter

Specifications

• Airflow (variable): 100–1,000 CFM (clean filters)

• Motor: 1 HP, thermally protected (single-phase)

• Power / Current: 115 V, 60 Hz, ~5 A (operates on a 15 A circuit)

• Dimensions / Weight: 20″ W × 23″ D × 40″ H, ~94 lb (with filters)

• Cabinet/Shell: Roto-molded polyethylene

• Filtration: Two-ply ring prefilter → optional pleated carbon → HEPA 16″ × 16″ (common depths: 11.5″ or 3″ mini-pleat)

• Ducting Ports: 10″ outlet; optional 12″ inlet door

Installation (setup & use)

1. Place & secure on a level surface near the work zone; ensure clear intake/exhaust.

2. Choose mode: negative pressure (duct outlet outside), recirculation (return to room), or positive supply (feed filtered air into protected area).

3. Attach ducting: Use round lay-flat or flex duct; keep runs short and avoid sharp bends to preserve CFM.

4. Power: Plug into 115 V; avoid external solid-state speed controls.

5. Set airflow & verify: Use the dial to reach target CFM/pressure; verify with a differential pressure gauge for containment work.

6. Maintain filters: Inspect prefilters frequently; replace when loaded to protect HEPA life.

What’s in the Box

• Novair 1000 Variable Speed (F1000V) air scrubber (on wheels)

• HEPA filter (installed)

• Two-ply ring prefilter (installed)

• Pleated carbon filter (installed or included, per configuration)

• Owner’s manual

Important Details

• Performance is quoted with clean filters; expect lower CFM with loaded filters, long duct runs, sharp bends, or low line voltage.

• Filter options: Accepts 16″ × 16″ HEPA elements (e.g., 11.5″ deep or **3″ mini-pleat), plus ring and carbon prefilters—match to your SKU.

• Safety: For indoor, non-explosive atmospheres; follow local codes and project specifications.

Warranty

Electrical: 180 days • All other materials: 1 year (proof of purchase required; consumables/accessories excluded).
