Advance SW900 Walk-Behind Battery Sweeper — SW900242AHW/BATT2SBPKG

Overview

The Advance SW900 is a rugged walk-behind battery sweeper built for indoor/outdoor debris control in warehouses, schools, retail, and light industrial sites. This package (SW900242AHW/BATT2SBPKG) includes dual side brooms, a 24 V / 242 Ah wet battery pack, and an onboard charger—giving crews long runtime, easy charging, and edge-to-edge pickup with simple, one-touch operation.

Features

• Direct-throw sweeping with 24″ main broom for strong pickup of fine dust and larger litter

• Dual side brooms included for edge cleaning and a wider pass

• All controls at the handle: propulsion bar, broom start/stop, hopper release, and filter shaker

• Large panel dust filter with manual shaker to maintain airflow during shifts

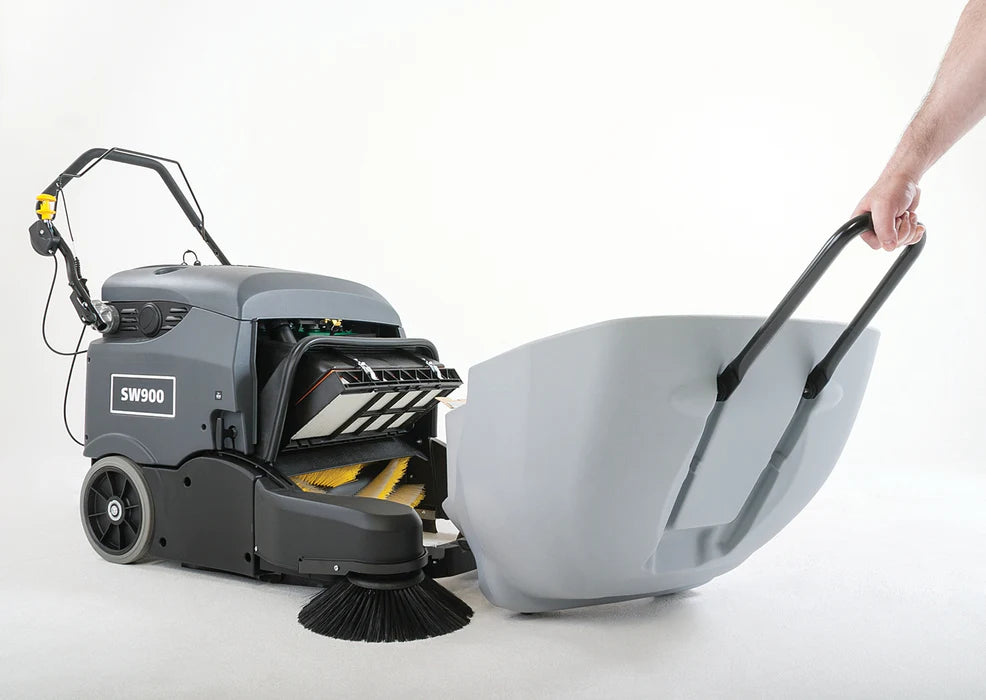

• One-hand, tool-free hopper removal for fast dumping

• Ergonomic, foldable handle and large wheels for smooth maneuvering on hard floors and carpet tiles

• Onboard charger (OBC): plug into any standard outlet—no external charger to carry

Specifications

• Cleaning path: 33″ with one side broom / 41″ with dual side brooms (included)

• Main broom (L × Ø): 24″ × 10.4″

• Side brooms: (2) × 12″

• Hopper capacity: ~2.1 ft³ (≈16 gal / 60 L), trolley-style

• Dust filter area: ~21 ft²; 5–10 µm efficiency; manual shaker

• Max productivity: up to ~40,000–50,850 ft²/hr (site- and setup-dependent)

• Power: 24 V system using (4) 6 V 242 Ah wet batteries (included)

• Runtime (typical): up to ~3 hours per charge

• Noise level: ~70 dBA

• Dimensions (L × W × H): ~55″ × 34″ × 43″

• Weight: ~350–380 lb (with batteries)

• Charger: Onboard, 115 VAC input

Installation (Setup & Use)

1. Uncrate & inspect; fully charge the 24 V battery pack before first use.

2. Verify broom setup: main broom centered and both side brooms adjusted for light bristle contact.

3. Power on and use one-touch start to engage brooms and vacuum fan.

4. Sweep in overlapping passes; reduce speed in heavy debris and use side brooms to pull edge litter in.

5. Use the manual filter shaker periodically to maintain airflow.

6. Dump the hopper when full; re-seat until it latches. After the shift, place on OBC to recharge.

What’s in the Box

• Advance SW900 walk-behind sweeper (assembled)

• 24″ main broom (installed)

• (2) 12″ side brooms (installed)

• Panel dust filter with manual shaker (installed)

• Trolley-style debris hopper

• Battery set: (4) × 6 V 242 Ah wet cells (installed)

• Onboard charger (115 V)

• Operator’s manual / quick-start guide

Important Details

• Designed for dry debris on hard floors and low-pile carpet; do not pick up liquids, hot ash, or solvents.

• Performance depends on broom height, travel speed, and filter cleanliness—shake the filter regularly.

• Replace worn main/side brooms and inspect seals to maintain pickup and dust control.

• Store and charge batteries indoors; maintain electrolyte levels per wet-battery guidelines.

Warranty

Machine: 1-year limited (parts & labor) • Batteries/charger: 1-year limited (pro-rated). Wear items (brooms, belts, filters, skirts) excluded. Keep proof of purchase.
