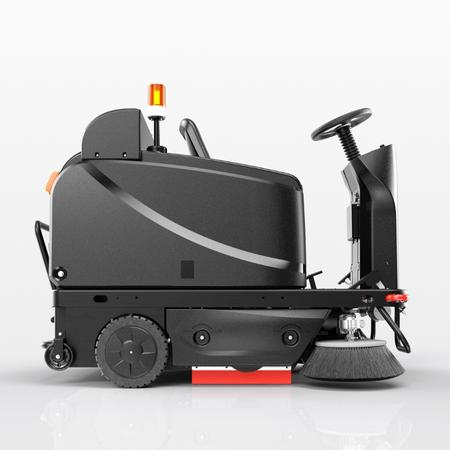

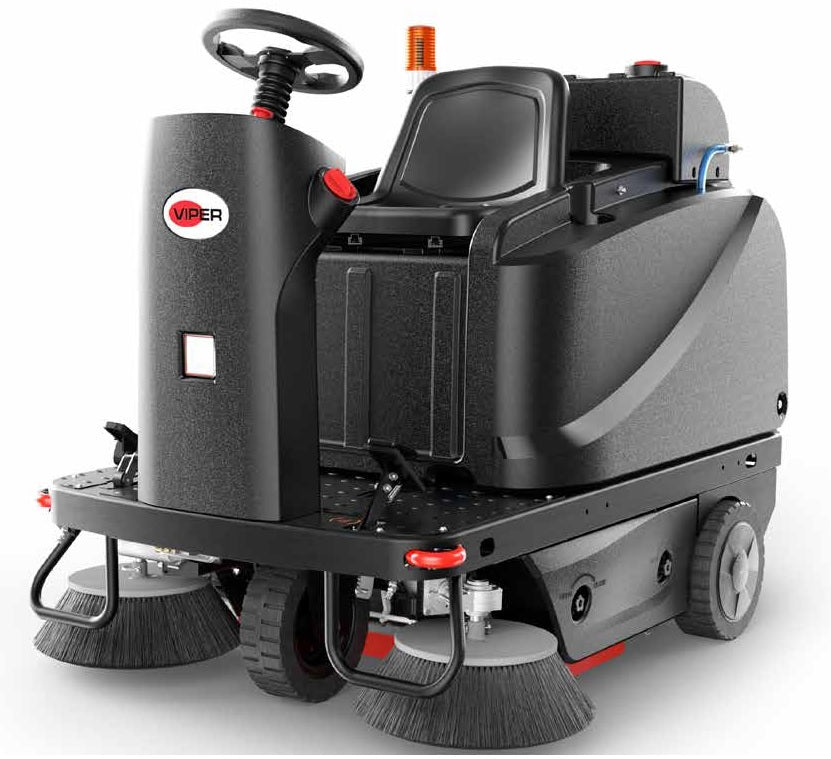

Viper ROS1300 US Ride-On Sweeper — ROS1300-US

Overview

The ROS1300 US Ride-On Sweeper is a compact, battery-powered sweeper engineered for daily debris and dust control across warehouses, schools, retail, and light industrial sites. With dual side brooms and a high-capacity trolley-style hopper, it delivers wide path coverage, simple one-touch operation, and low total cost of ownership in a maneuverable rider format.

Features

• Wide sweep path: Main broom with dual side brooms for edge-to-edge pickup (up to ~53″ total path)

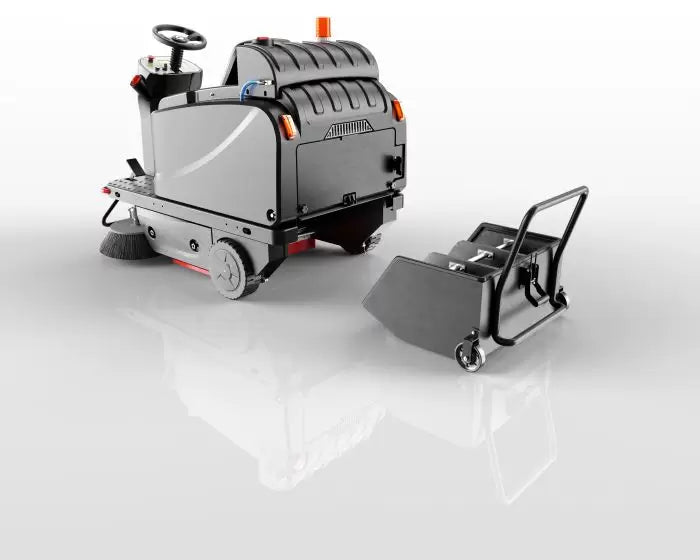

• High-capacity hopper: Trolley-style debris hopper (~34 gal / 130 L) for quick dump and longer runs

• Dust control: Large surface-area panel filter with electric shaker to keep airflow strong

• One-touch start: Activates main broom, side brooms, and vacuum fan together

• Rugged & practical: Rotomolded covers, steel chassis, debris flap for larger litter

• Operator comfort: Adjustable seat, easy steering column, speed-reduction in turns, LED beacon

• Battery powered: 24 V system for indoor/outdoor sweeping without emissions

Specifications

• Sweeping path: ~27–28″ main broom; ~53″ with two side brooms

• Hopper capacity: ~130 L (~34 gal), trolley-style

• Power/drive: 24 V battery system; rear-wheel drive; variable travel speed (up to ~5 mph / 8 km/h)

• Dust filter: Panel filter with electric shaker (fine-dust capture)

• Gradeability: Up to ~16% (site-dependent)

• Dimensions (L × W × H): ~66″ × 42″ × 51″

• Turning aisle width (min): ~100″ (2550 mm)

• Sound level: ~70–74 dBA (use-dependent)

Installation (Setup & Use)

1. Uncrate & inspect the machine; charge the batteries fully before first use.

2. Fit side brooms (if removed for shipping) and check hopper seating and seals.

3. Power on and use one-touch start to engage brooms and vacuum.

4. Set travel speed appropriate for soil load and floor type; sweep in overlapping passes.

5. Use debris flap for larger litter; monitor hopper fill and empty into an approved receptacle.

6. End of shift: Empty hopper, shake/clean the dust filter, and place on charge.

What’s in the Box

• ROS1300 US Ride-On Sweeper (assembled)

• Dual side brooms (installed)

• Main broom & dust filter (installed)

• Trolley-style hopper

• Battery pack & onboard charger (configuration-dependent)

• Operator’s manual / quick-start guide

Important Details

• Performance figures are based on clean filter and optimal conditions; dust load, floor texture, and operator speed will affect results.

• Use the filter shaker regularly to maintain airflow; replace brooms and filter media as they wear.

• Designed for dry debris on hard floors; do not pick up liquids, hot ash, or solvents.

• Observe site safety: beacon on, speed reduction in turns, and clear line-of-sight while operating.

Warranty

Machine: 1-year limited (parts & labor) • Batteries/charger: 1-year limited (pro-rated). Wear items (brooms, filters, skirts) excluded. Keep proof of purchase.
