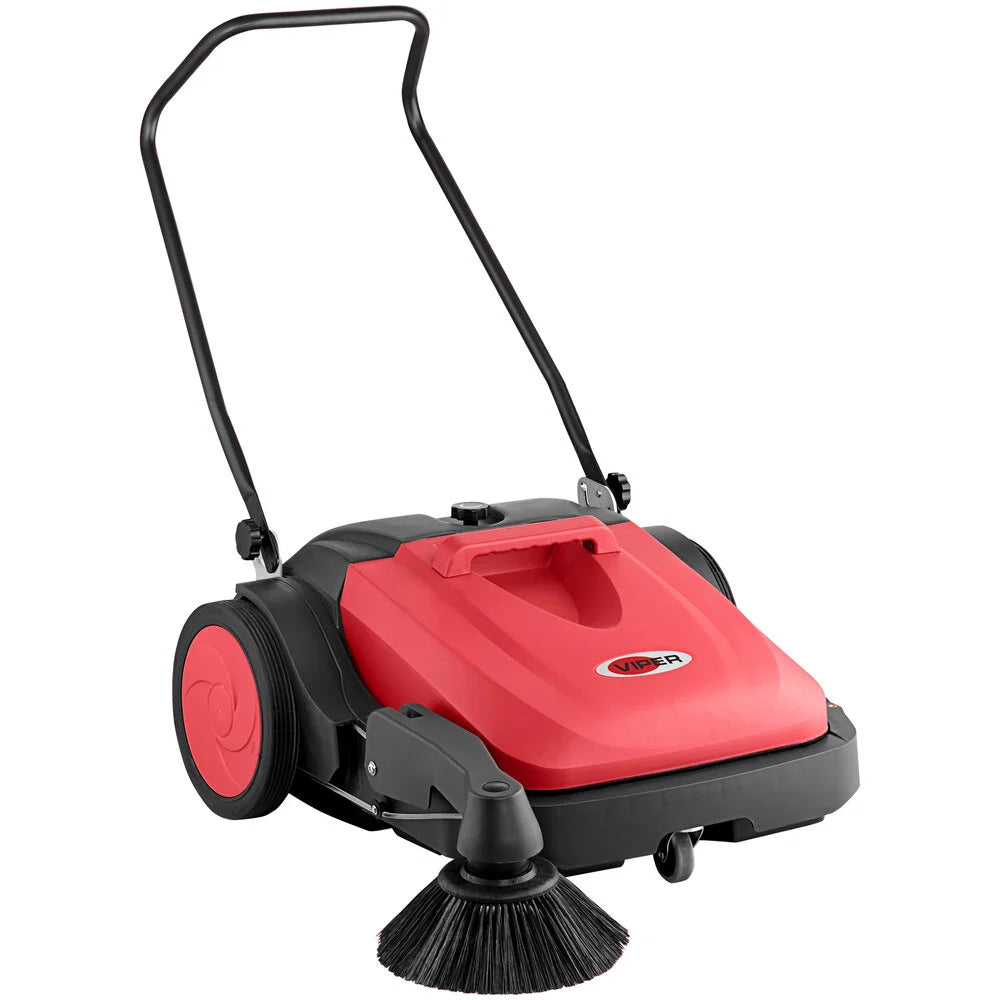

Viper PS480-US Push Sweeper — 50000504

Overview

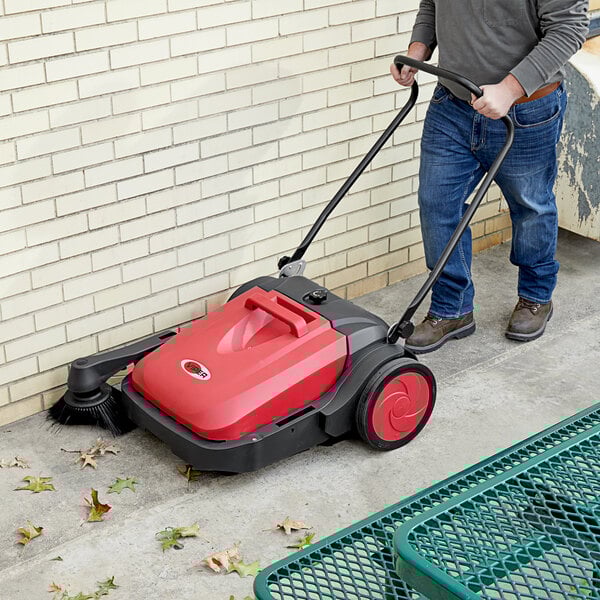

The PS480-US is a compact, all-mechanical push sweeper for fast, cord-free debris pickup on hard floors—inside or out. A 28″ working width (with right-side broom) and a lightweight 10-gal hopper let crews cover aisles, docks, entries, and sidewalks efficiently without batteries or motors to maintain.

Features

• 28″ sweep path: Main broom + right side broom for edge-to-edge pickup

• All-mechanical drive: No cords, batteries, or electronics—low maintenance, high uptime

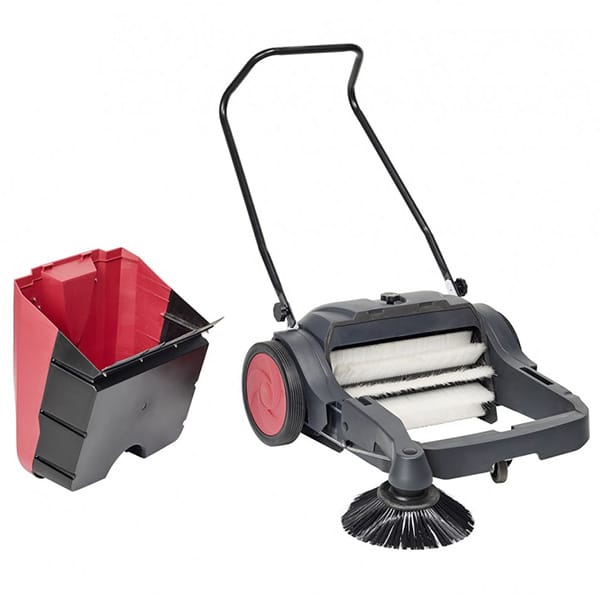

• Large, lift-out hopper: 10 gallons (≈38 L) with molded handle for quick dump

• Compact & maneuverable: Low profile nose; stores upright to save space

• Adjustable handle & broom pressure: Dial in performance for light dust or heavier litter

• Durable build: Rugged chassis, belt/two-wheel transmission for reliable broom rotation

• Versatile debris: Paper, leaves, caps, nuts/bolts, and general dry debris on hard floors

Specifications

• Working width (with side broom): 28 in

• Main broom length: 19 in

• Hopper capacity: 10 gal (≈38 L)

• Productivity (theoretical): up to ~15,000 ft²/hr

• Power: Manual push (no power required)

• Dimensions (L × W × H): 52″ × 33.5″ × 39.5″

• Weight: ~43 lb (shipping ~53 lb)

• Primary use: Dry debris on indoor/outdoor hard floors

Installation (Setup & Use)

1. Unbox & assemble the handle; attach the right side broom and verify broom height.

2. Set broom pressure for floor type: lowest that still lifts debris is best for long brush life.

3. Sweep in overlapping passes; use the side broom to pull edge debris into the main path.

4. Empty the hopper into an approved receptacle; re-seat until it latches securely.

5. Store upright to minimize footprint and protect brushes.

What’s in the Box

• PS480-US push sweeper

• Right side broom (installed)

• Main cylindrical broom (installed)

• 10-gal lift-out hopper

• Operator’s manual / quick-start

Important Details

• Designed for dry debris only; avoid liquids, hot ash, or solvents.

• Brush height and sweeping speed affect pickup and dust control—adjust for best results.

• Replace worn main/side brooms to maintain cleaning width and performance.

• For very fine dust, consider a powered vacuum sweeper with filtration.

Warranty

Frame/body: 10-year limited • Parts: 3-year limited • Labor: 3-year limited • Travel: 1-year limited. Wear items (brooms, belts) excluded. Keep proof of purchase.
