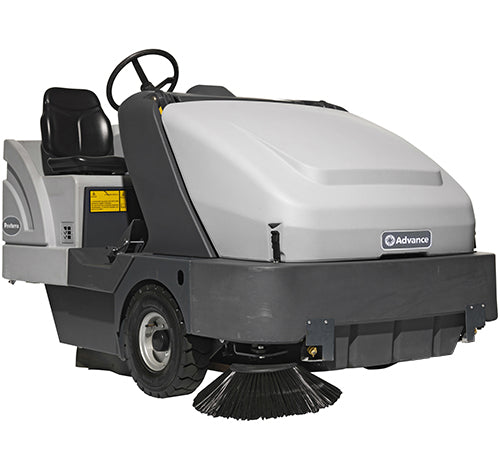

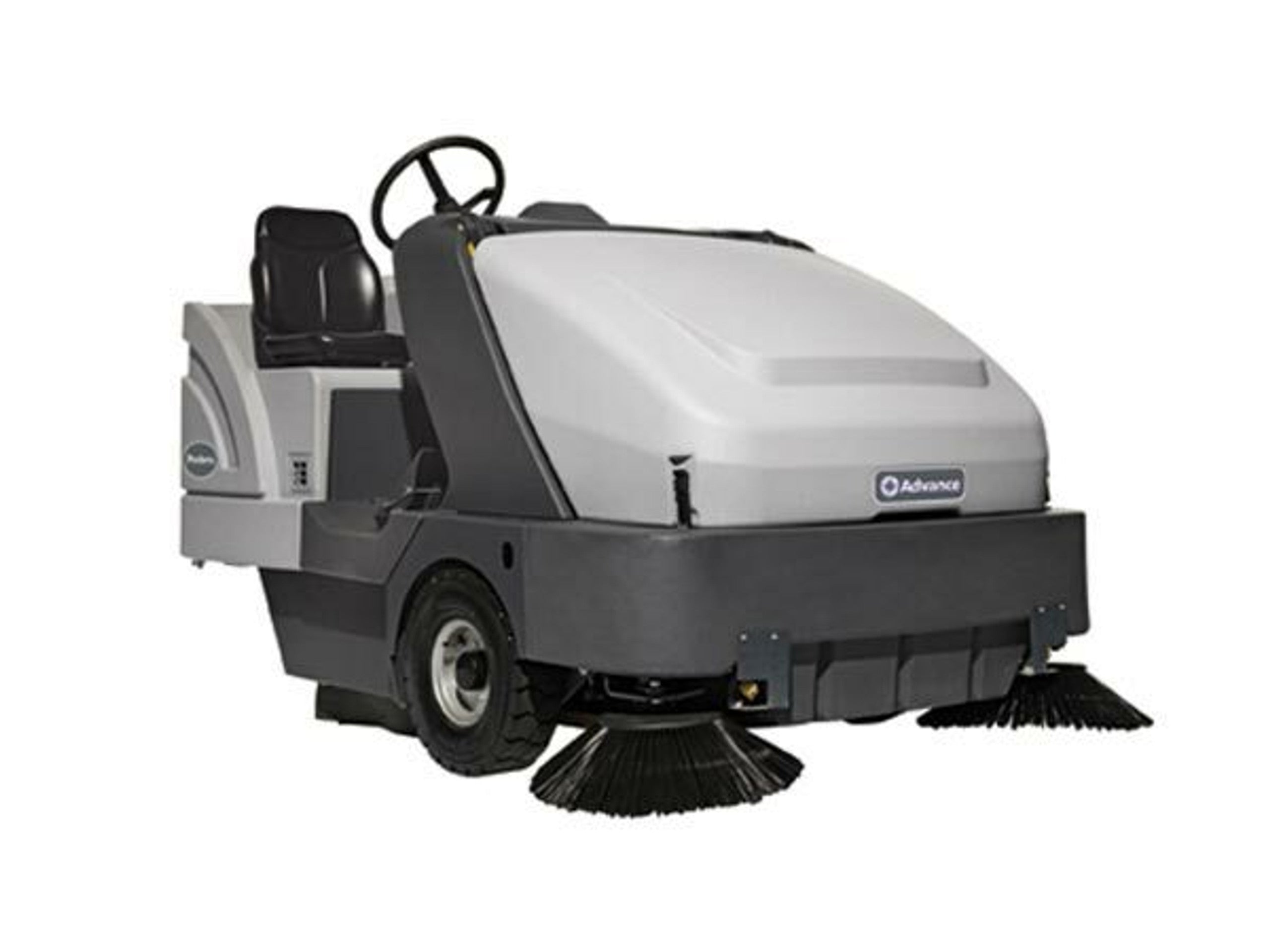

Advance Proterra 5130 LPG Triosweep Rider Sweeper — 56380607

Overview

The Proterra 5130 LPG Triosweep is a heavy-duty industrial ride-on sweeper designed for warehouses, factories, parking decks, and foundries. Its TrioSweep configuration (main broom + two side brooms) delivers a wide 64″ sweep path, while an LPG 31 HP Kubota engine, high-capacity 11 ft³ hopper, and elevated 62″ dump height help crews clear large areas fast with excellent dust control.

Features

• TrioSweep 64″ path: Main broom with dual side brooms for edge-to-edge pickup

• Powerful & proven: 31 HP 3-cyl LPG engine (Kubota) with hydrostatic drive

• High-capacity hopper: 11 ft³ steel hopper with 62″ high dump

• Dust control system: Multi-stage filtration with automatic filter shaker; side-broom dust suppression

• Operator friendly: Clear-view sightline, power steering, ergonomic controls, comfort seat

• Set-and-forget broom pressure: Consistent performance as brushes wear

• Tight spaces: ~120″ aisle U-turn; compact footprint for busy plants

• Rugged build: Steel chassis, large industrial tires, optional overhead guard & beacon

Specifications

• Sweeping path: 64″ (dual side brooms) • 51″ (single side broom)

• Hopper volume / dump height: 11 ft³ • 62″ high dump

• Engine (LPG): Kubota DF972, ~31 HP

• Filtration: Multi-stage panel system with automatic variable-speed shaker

• Ramp/gradeability: ~20–21%

• Dimensions (L × W × H): ~87.4″ × 52″ × 57.5″ (to hood) • ~79″ w/ overhead guard

• Aisle U-turn: ~120″

• Sound level (operator ear): ~87 dBA

• Machine weight: ~2,080 lb (approx.)

Installation (Setup & Use)

1. Pre-delivery check: Inspect machine, verify broom setup, and fit LPG tank (supplied by site).

2. Start-up: Seatbelt on, parking brake set, start engine, warm up to operating RPM.

3. Set brooms & vacuum: Lower main broom and both side brooms; set broom pressure and engage vacuum fan.

4. Sweep pattern: Work in overlapping passes; reduce speed in heavy debris and near racking.

5. Filter maintenance: Use the filter shaker periodically to maintain airflow and dust capture.

6. Dumping: Drive to an approved container, raise to 62″, open hopper, and empty safely.

7. Shutdown: Park on level ground, raise brooms, idle to cool, turn off fuel supply, and complete daily checks.

What’s in the Box

• Proterra 5130 LPG TrioSweep rider sweeper (dual side brooms installed)

• Main cylindrical broom & panel dust filter (installed)

• Operator’s seat with seatbelt, strobe/beacon (if equipped), manuals

• (Common options: overhead guard, work lights, extra side broom(s), beacon, tire choices)

Important Details

• Designed for dry debris on industrial hard floors; not for liquids, hot ash, or combustible dust atmospheres.

• Maintain brushes, seals, and filter media to preserve pickup and dust control.

• Follow site policy for LPG storage and handling; inspect hoses, regulator, and tank mount regularly.

• Actual performance depends on broom selection, brush height, travel speed, and filter cleanliness.

Warranty

Machine: up to 3-year commercial parts & labor (wear items excluded) • Engine/LPG components: per engine manufacturer. Keep proof of purchase.
