Clarke Focus II MicroRider 26D Ride-On Auto Scrubber — W242-OBC

Overview

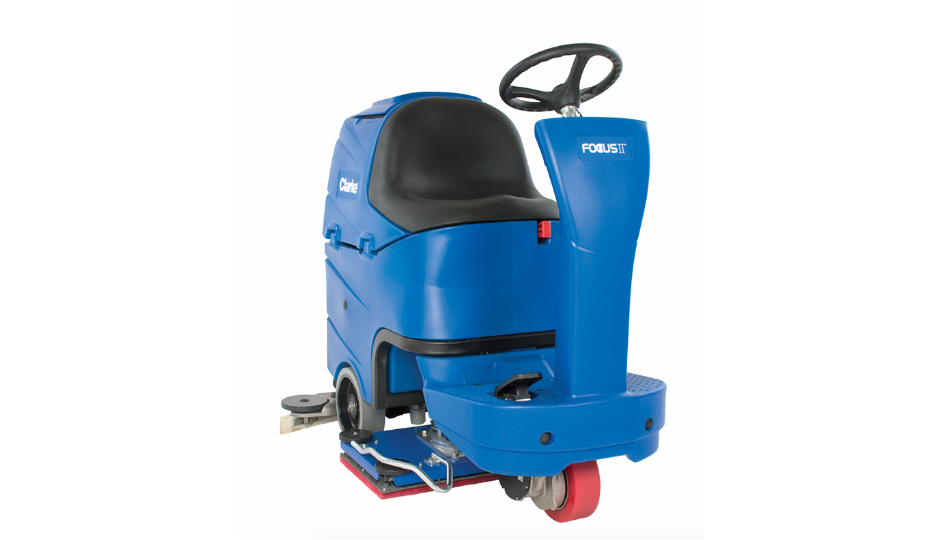

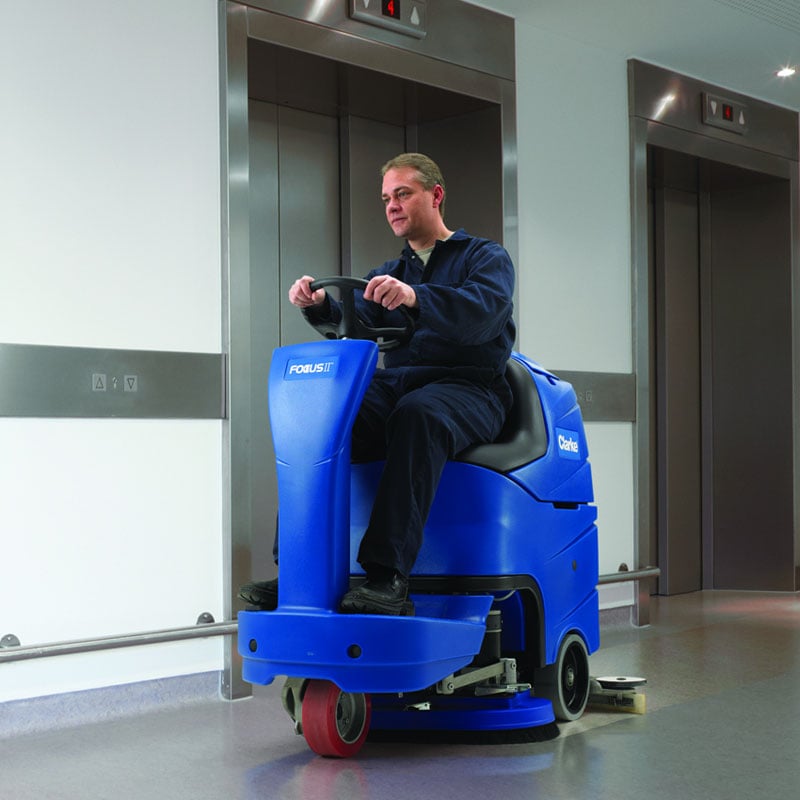

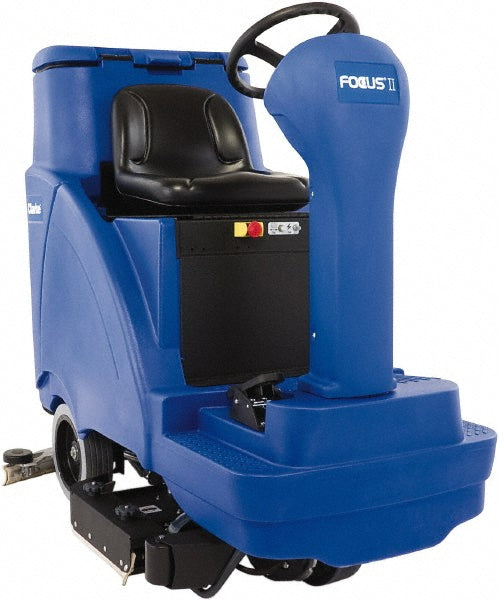

The Focus II MicroRider 26D is a compact ride-on scrubber built for high-productivity cleaning in schools, retail, healthcare, and facility services. Its 26″ disc deck, tight turning radius, and rider comfort let crews cover big areas fast while fitting through standard aisles and doorways. This configuration includes the W242 wet battery pack and onboard charger (OBC) for long runtimes and simple charging.

Features

• 26″ disc scrub head (26D): Even down-pressure, consistent results; quick-change pad drivers/brushes

• Compact rider format: Micro-rider footprint with excellent visibility and maneuverability

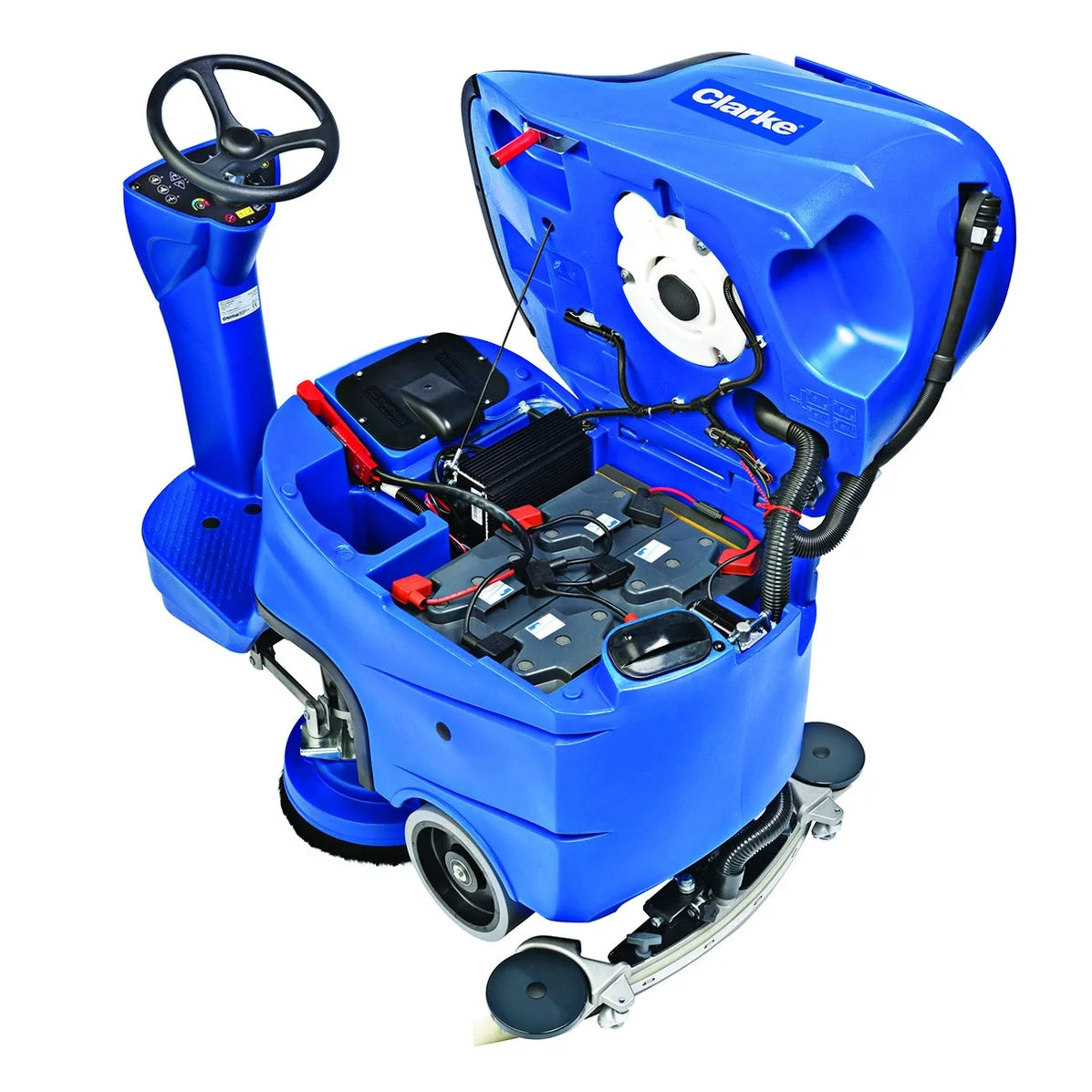

• High-capacity power (W242): Wet batteries sized for extended shifts and stable traction

• Onboard charger (OBC): Plug into any standard outlet—no external charger to carry

• Operator-friendly controls: One-touch start/stop, solution flow dial, clear status indicators

• Fast service: Swing-out squeegee, debris screen, tool-free access to tanks and filters

• Quiet operation: Daytime cleaning friendly in occupied spaces

Specifications

• Cleaning path: 26 in (660 mm)

• Squeegee width: ~33–35 in

• Solution / Recovery tanks: ~21–23 gal / ~23–25 gal

• Brush speed / down pressure: ~200–230 rpm; ~60–90 lb selectable

• Theoretical / Practical productivity: up to ~34,000 ft²/hr / ~18,000–24,000 ft²/hr

• Power: 24 V system, W242 wet batteries (high-capacity class)

• Charger: Onboard (OBC), 120 V input

• Run time (typical): up to ~3–4 hrs per charge (settings & floor dependent)

• Sound level: ~62–68 dBA

• Dimensions (L×W×H): ~57–60″ × 27–29″ × 48–50″

• Weight: ~550–650 lb with batteries & fluids

Installation (Setup & Use)

1. Uncrate & inspect; fully charge the W242 batteries before first use.

2. Fit pad drivers/brushes to the 26″ deck; attach and level the squeegee.

3. Fill solution tank with water and neutral pH detergent (per label dilution).

4. Power on, set solution flow and down-pressure; choose Eco/Standard as needed.

5. Lower deck & squeegee and scrub with slight pass overlap; match travel speed to soil load.

6. Post-clean: Drain/rinse tanks, clean debris screen and squeegee blades, and connect the onboard charger to recharge.

What’s in the Box

• Focus II MicroRider 26D ride-on scrubber

• Two 13″ pad drivers (or brushes; configuration-dependent) for the 26″ deck

• Complete squeegee assembly with hoses

• Battery set: W242 wet (installed)

• Onboard 120 V charger (OBC)

• Operator’s manual & quick-start card

Important Details

• Use neutral pH detergents; avoid solvents or flammables.

• Maintain wet batteries: check electrolyte levels and top off per schedule; allow cooldown before charging.

• Rotate/replace pads and squeegee blades to maintain cleaning and pickup quality.

• Productivity, runtime, and noise vary by floor type, pad selection, soil load, and settings.

Warranty

Machine: 1-year limited (parts & labor) • Poly tanks: 3-year limited • Batteries/charger: 1-year limited (pro-rated). Consumables (pads, blades) excluded. Keep proof of purchase.
