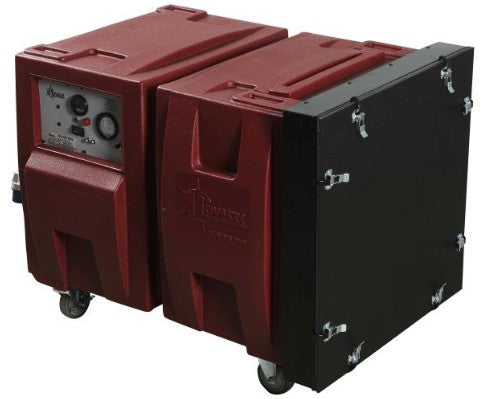

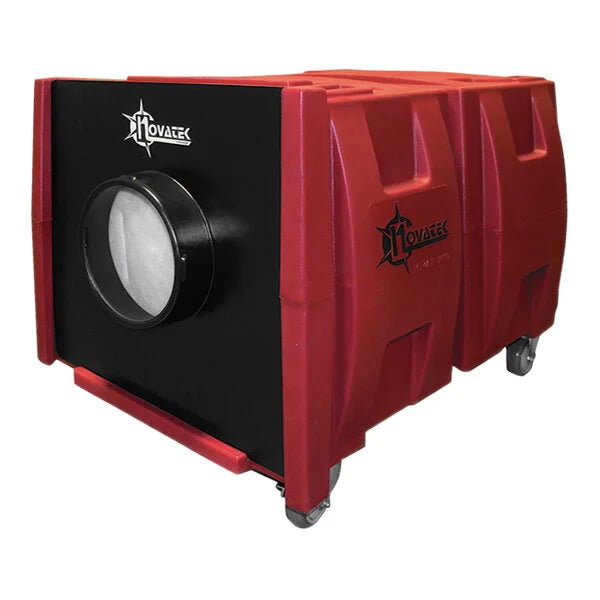

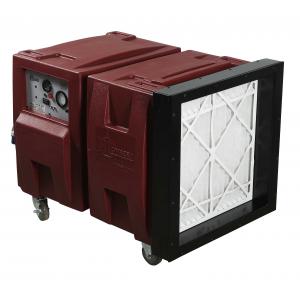

Novatek Novair 2000-BIO Air Scrubber — F2000BIO

Overview

The Novair 2000-BIO is a high-output, variable-speed HEPA air scrubber/negative air machine built for abatement, restoration, and infection-control workflows. Delivering up to ~2,000 CFM on a standard 115 V / 15 A circuit, it pairs a rugged roto-molded cabinet with a sealed HEPA final stage and a BIO-focused configuration (enhanced gasketing and hygiene-oriented surfaces) for reliable particle control in demanding environments.

Features

• Variable airflow: Approx. 700–2,000 CFM (with clean filters) for precise pressure/ACH targets

• True HEPA final stage: 99.97–99.99% @ 0.3 µm capture efficiency (gasket-sealed)

• BIO configuration: Tight-seal filter path, hygiene-friendly interior surfaces, and provisions for odor/VOC media

• Multi-stage filtration: Ring or pleated prefilter → optional carbon → HEPA final

• Duct-ready: 12″ outlet collar; optional 12″ inlet door for source capture

• Job-site tough: Roto-molded polyethylene cabinet, steel axle, large wheels, lift handles

• Service-friendly: Quick front-door filter access; optional hour meter/differential pressure gauge

• Safety & power: Thermally protected motor; no external solid-state speed controls required

Specifications

• Airflow (variable): ~700–2,000 CFM (clean filters; site conditions reduce CFM)

• Power: 115 V, 60 Hz, up to ~12 A on high (standard 15 A circuit)

• Motor/Drive: High-efficiency blower with integral variable-speed control

• Filtration sizes: Prefilter(s) + 16″ × 16″ HEPA (common depths: 3″ mini-pleat or 11.5″)

• Ducting: 12″ outlet; optional 12″ inlet adapter/door

• Cabinet: Roto-molded polyethylene with gasketed service panel

• Sound level: ~70–74 dBA @ 5 ft (speed dependent)

• Dimensions: approx. 24″ W × 28″ D × 45″ H

• Weight: approx. 120–135 lb

• Cord: 10 ft, grounded, NEMA 5-15P

Installation (setup & use)

1. Place & secure: Set on a level surface; ensure clear intake/exhaust and lock in place.

2. Choose mode:

   • Negative pressure: Duct the outlet outdoors/away from the work zone.

   • Recirculation/positive supply: Return or supply filtered air within/to the target area.

3. Attach ducting: Use 12″ lay-flat or flex duct; minimize length and sharp bends to preserve CFM.

4. Power: Plug into a dedicated 115 V / 15 A circuit. Avoid using external speed controllers.

5. Set airflow & verify: Adjust the speed dial to meet target ACH/pressure; confirm with a differential pressure gauge when running containment.

6. Filter maintenance: Replace prefilters frequently to protect HEPA life and sustain airflow.

What’s in the Box

• Novair 2000-BIO (F2000BIO) air scrubber (on wheels)

• Prefilter (installed)

• HEPA filter (installed, factory-tested)

• Owner’s manual

• (Configuration-dependent options: carbon prefilter, inlet door, hour meter/DP gauge)

Important Details

• Performance notes: Ratings are with clean filters and minimal duct losses; real-world CFM drops with loaded filters, long runs, bends, or low line voltage.

• Application: Indoor, non-explosive/IDLH environments; follow local codes and site protocols.

• Sizing tip: Many projects target ≥ 6 ACH—add a safety margin (25–75%) for filter loading and duct losses.

• Filter integrity: Use correctly sized, gasketed filters to maintain capture efficiency.

Warranty

Electrical components: 180 days • All other materials: 1 year to the original purchaser (consumables/accessories excluded). Retain proof of purchase; misuse or non-approved parts may void coverage.
